Smart Lifting For Space-Constrained Areas

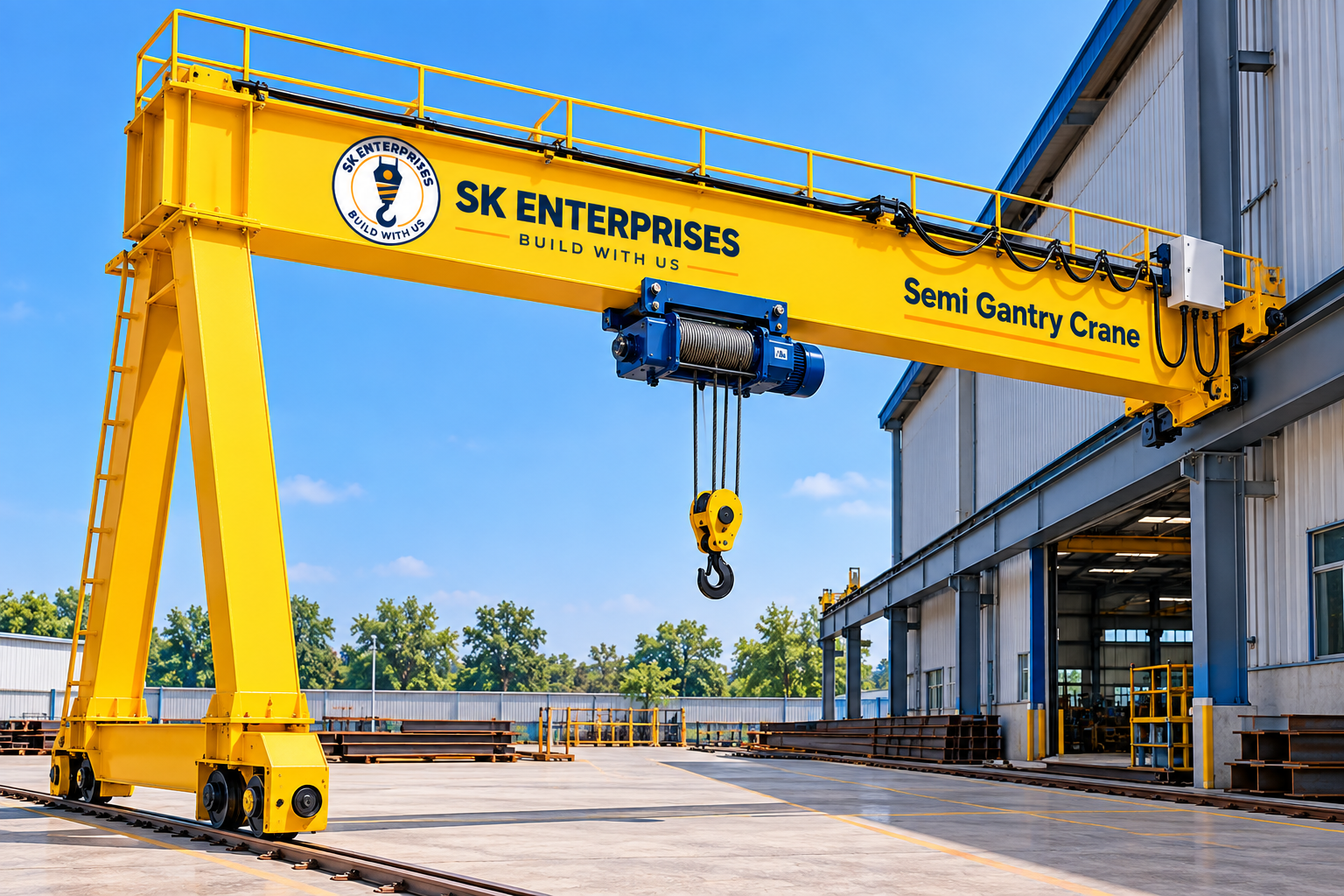

Semi Gantry Cranes are designed for applications where a full gantry structure is not required and available building infrastructure can be effectively utilised on one side.
The semi-gantry arrangement combines an overhead runway with a floor-mounted rail system, providing an efficient lifting solution while making better use of available industrial floor space.
The crane can be configured according to required capacity, span, lifting height, travel length, duty cycle and existing building conditions.
Why Choose Semi Gantry Crane?
A practical lifting solution developed for facilities where existing overhead structures can be combined with floor-level gantry support.
Space Efficient
Designed to utilise available building space without requiring a full gantry arrangement.
Existing Structure
One side can be supported by an existing overhead runway or suitable building structure.
Smooth Movement
Designed for reliable cross travel and long travel movement across the required working area.
Custom Configuration
Crane dimensions and support arrangement can be developed according to site conditions.
Key Features
Technical Specifications
| Specification | Details |
|---|---|
| Crane Type | Semi Gantry Crane |
| Capacity | 1 Ton to 25 Ton |
| Span | 8 Meter to 30 Meter |
| Lift Height | 5 Meter to 15 Meter |
| Operation | Pendant / Radio Remote |
| Hoist Type | Electric Wire Rope Hoist |
| Duty Class | Class II / III / IV |
